Speed and accuracy – must-haves for layout

Get in touch

Get more done quickly and easily

Getting started with digital layout

We’ve helped countless people transition from paper plans and tape measures into digital layout and QA/QC. Our streamlined workflows and lightweight instruments increase productivity and mobility on the jobsite. The ROI on digital workflows has never been clearer and more trusted than today, and it’s easier than ever to get started.

Go further with digital layout

If you are managing multiple field crews or large-scale projects and running total stations for layout, digital workflows are for you. The intuitive operation and depth of capabilities integrate effortlessly into your workflows to help you coordinate multi-trade project teams working on synchronised sets of drawings. Increase your points per day and reduce unnecessary rework with Topcon.

Lay out more points faster

Avoid costly rework

Proven ROI

Building construction trades

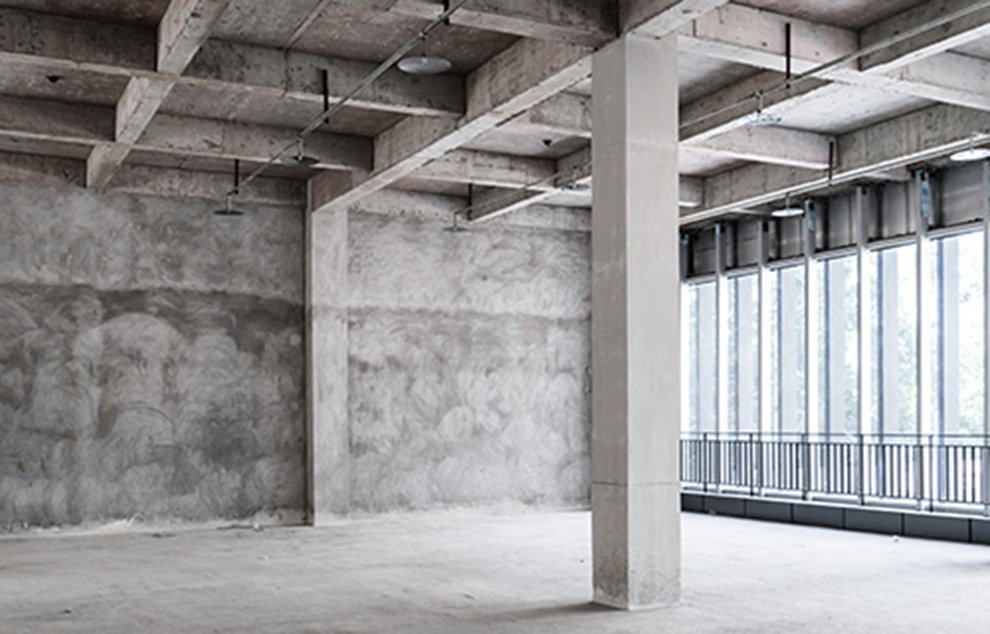

Concrete contractors

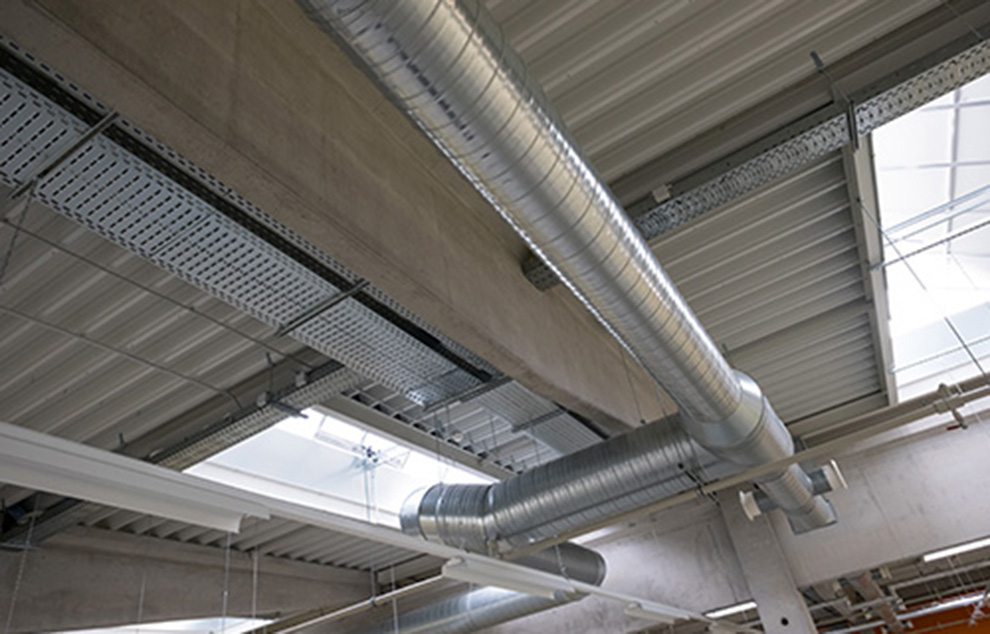

Mechanical, electrical, and plumbing

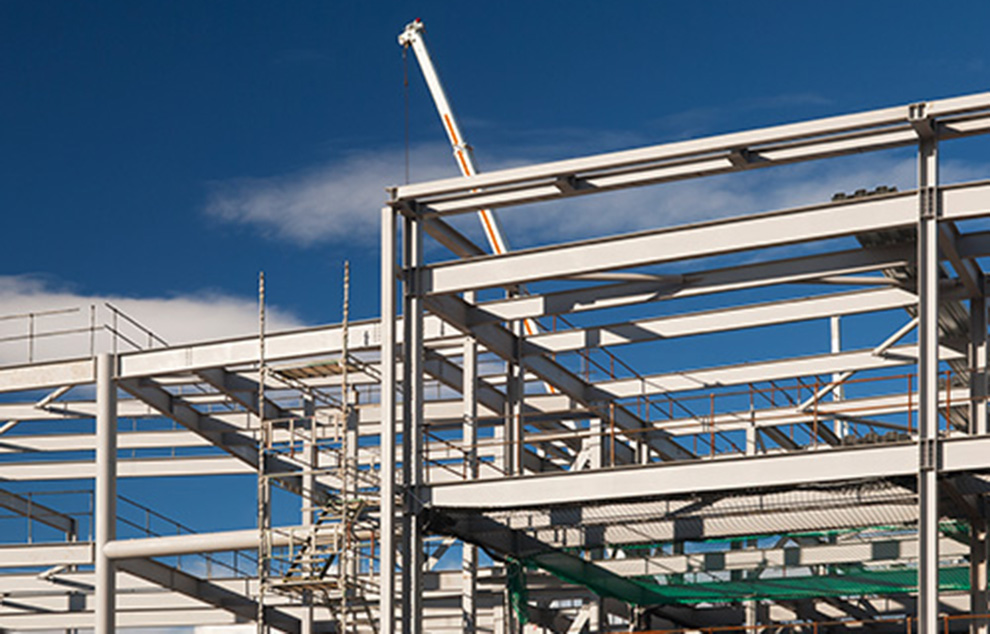

Structural steel

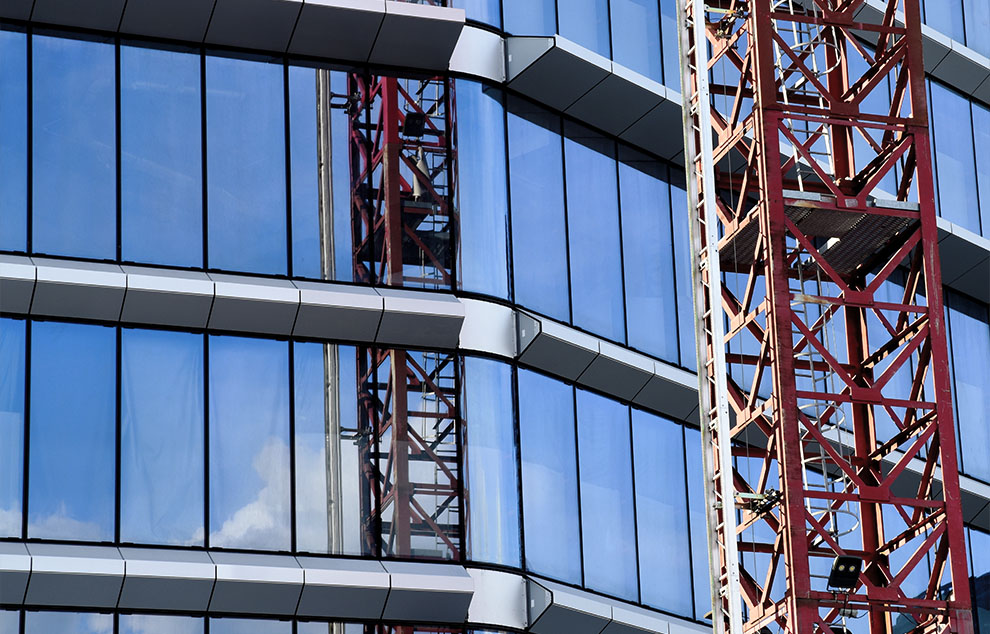

Glaziers and curtain wall

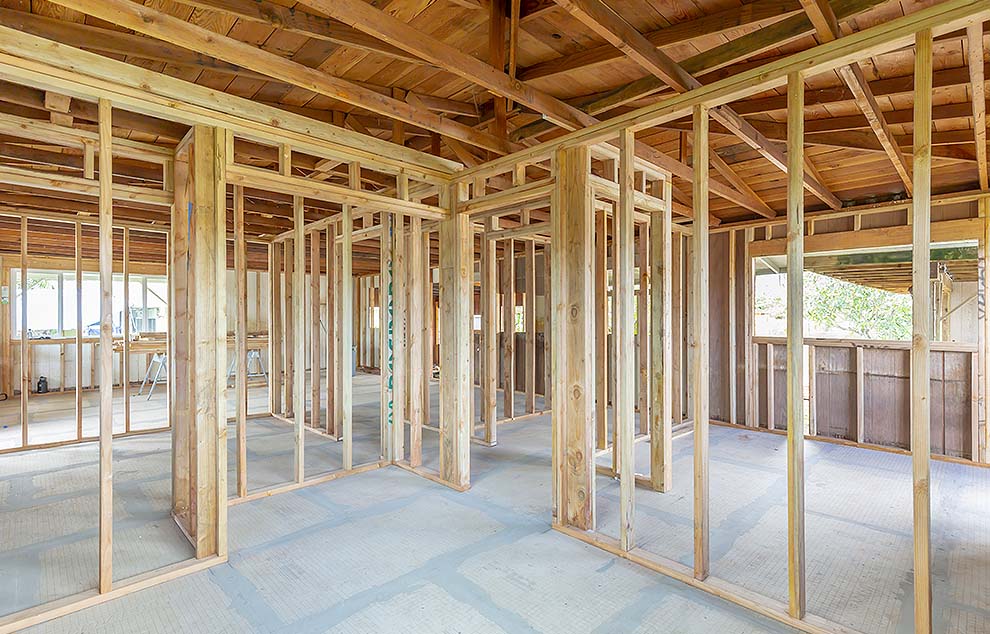

Construction framers and framing carpenters

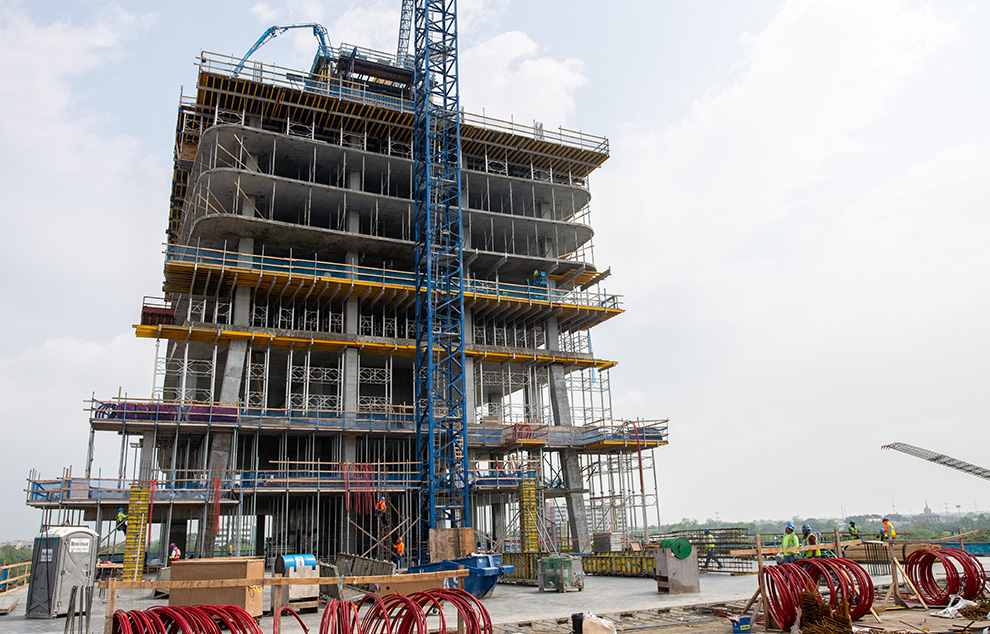

General contractors

See our solutions in action

Improving accuracy on a historic building

Saving time and money with a field and office Topcon solution.

historic building

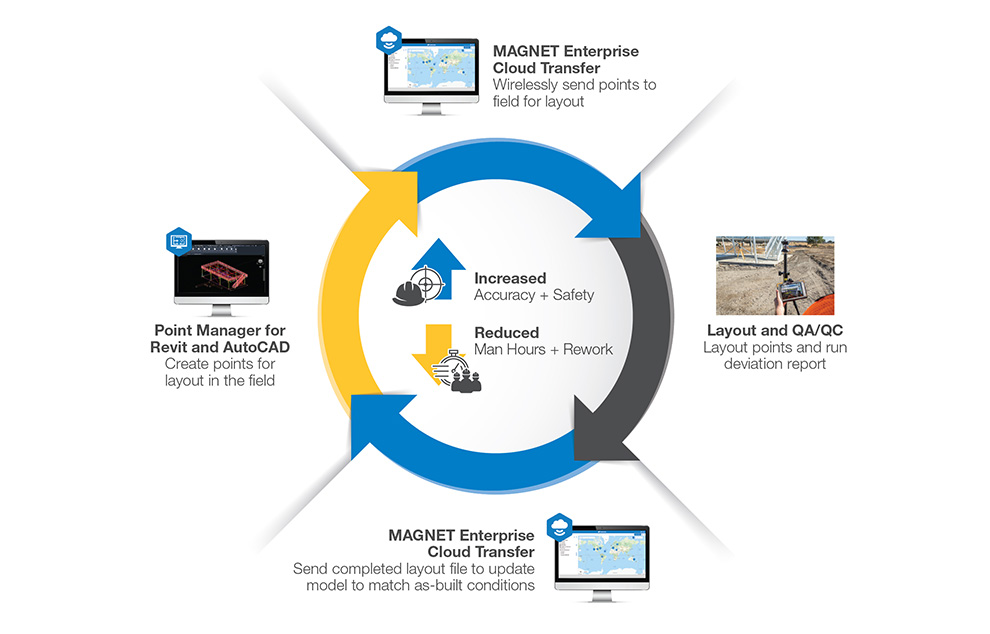

The workflow

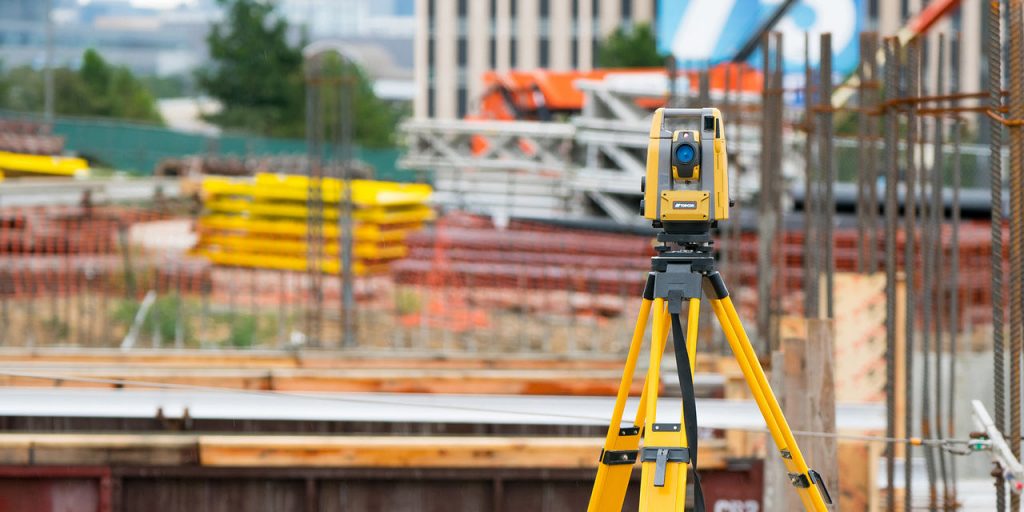

Layout with a robotic total station

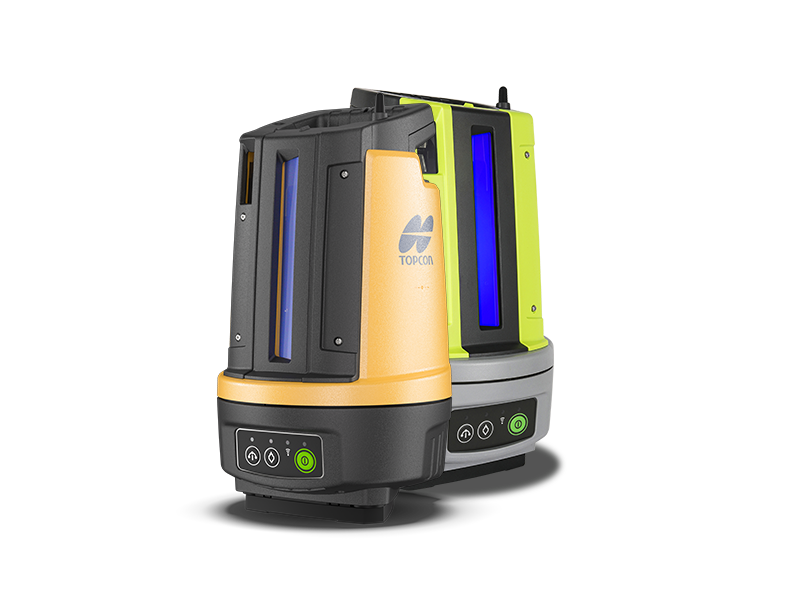

LN layout navigator

Compact, self-leveling, easy-to-set-up tool designed for jobsite layout and measuring.

historic building

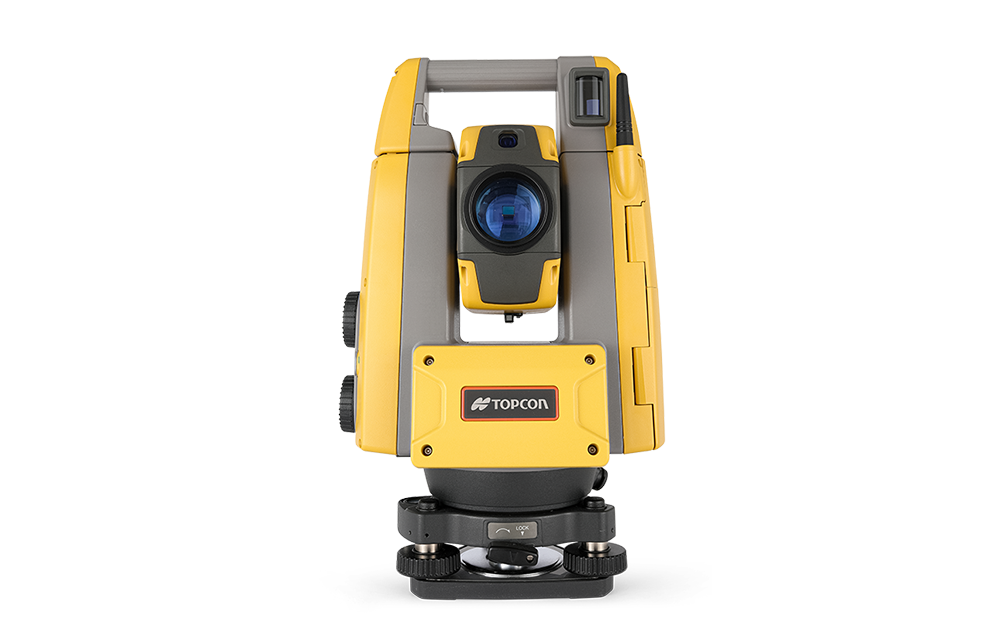

GT robotic total station

High-speed, lightweight instrument to increase jobsite mobility and tackle applications from basic to advanced.

historic building

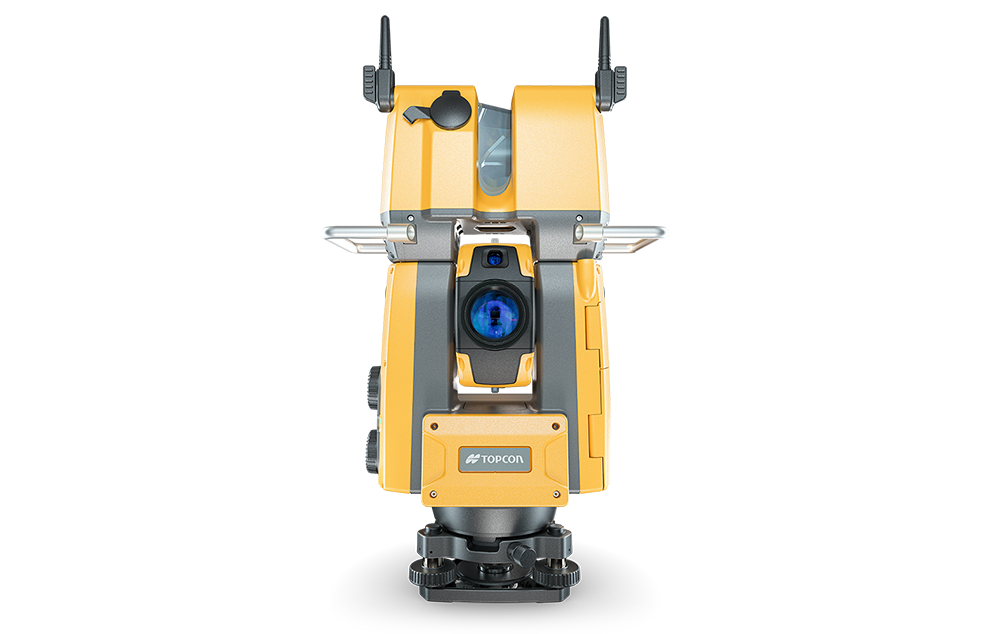

GTL scanning robotic total station

Single instrument for layout and reality capture on a single setup to streamline construction verification.

historic building

Get started fast

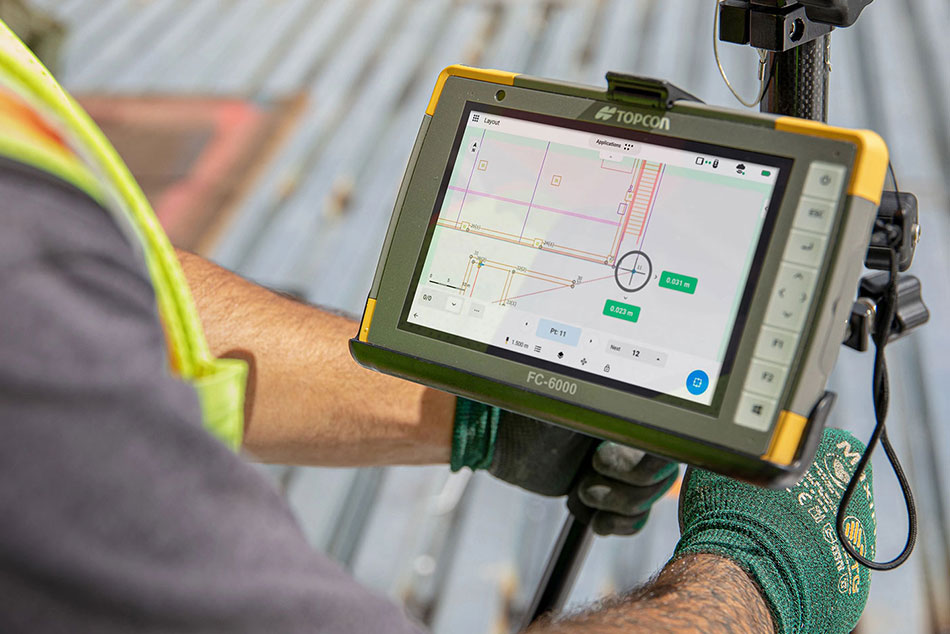

Topcon Digital Layout was designed to enable new users to painlessly adopt digital layout technology without a steep learning curve.

Digital Layout
