Laser-focused performance
Flexible magnetic and screw mounts provide quick setups and easy removal at the end of the day. Adding an optional holder also enables use on a grade rod, increasing the return on your grade-checking investment.

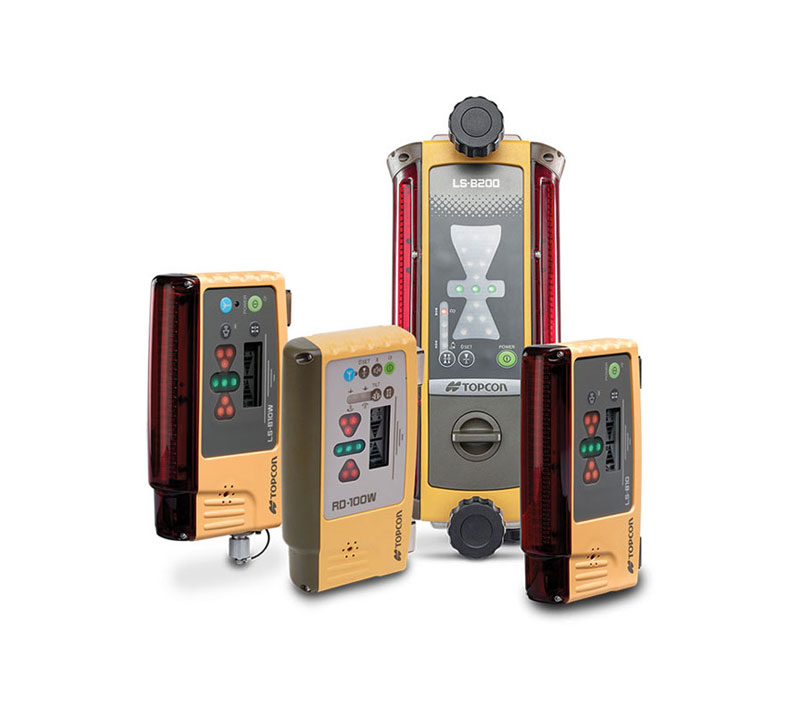

Topcon laser receivers provide cost-effective grade solutions for:

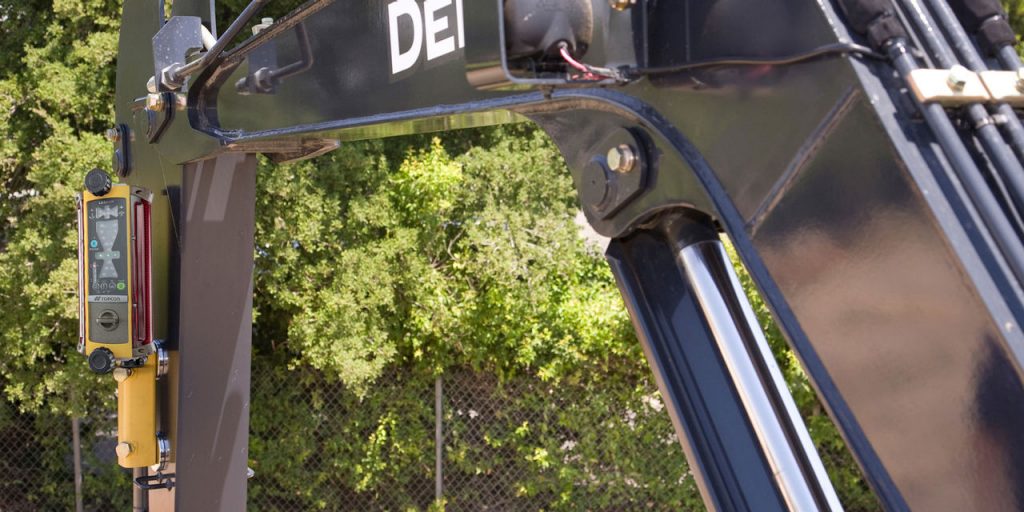

Excavators and backhoes
Bulldozers
Graders
Scrapers
Mini-excavators
Skid-steer loaders
Compact track loaders
Dragboxes
Pole-based grade checking
Other construction machines and attachments
NOTE: Due to interstate and international shipping constraints, Topcon products do not include alkaline batteries. Types and numbers of alkaline batteries required for each product are clearly indicated as part of the product package and should be purchased locally.
Compare products
Find the right product for your applications.

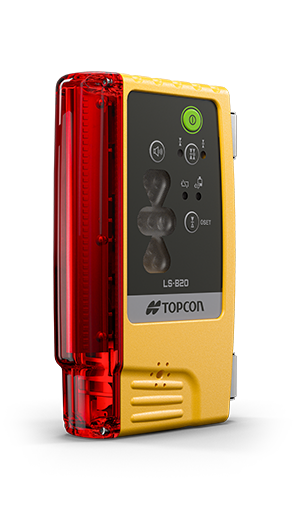

LS-B20
Detection range (mm/ft)
120/0.4
Detection angle (deg)
270
Detection precision (mm/ft)
Mode 1: +/- 2/0.007
Mode 2: +/- 6/0.02
Mode 3: +/- 12/0.04
Mode 4: +/- 30/0.1
Laser detection range (diameter; m/ft)
700/2300
Power source
3 AA dry cell batteries
Continuous operating time (hours)
100
IP-class
IP-66
Wireless communication range (m/ft)
---
Interface
---
Remote Display
---
On-grade matching (mm/ft)
40/0.13
Recommended application
Grade checking

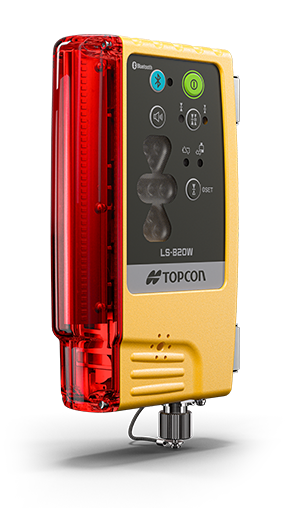

LS-B20W
Detection range (mm/ft)
120/0.4
Detection angle (deg)
270
Detection precision (mm/ft)
Mode 1: +/- 2/0.007
Mode 2: +/- 6/0.02
Mode 3: +/- 12/0.04
Mode 4: +/- 30/0.1
Laser detection range (diameter; m/ft)
700/2300
Power source
3 AA dry cell batteries
Continuous operating time (hours)
30
IP-class
IP-66
Wireless communication range (m/ft)
20/65
Interface
RS-485/CAN/Bluetooth
Remote Display

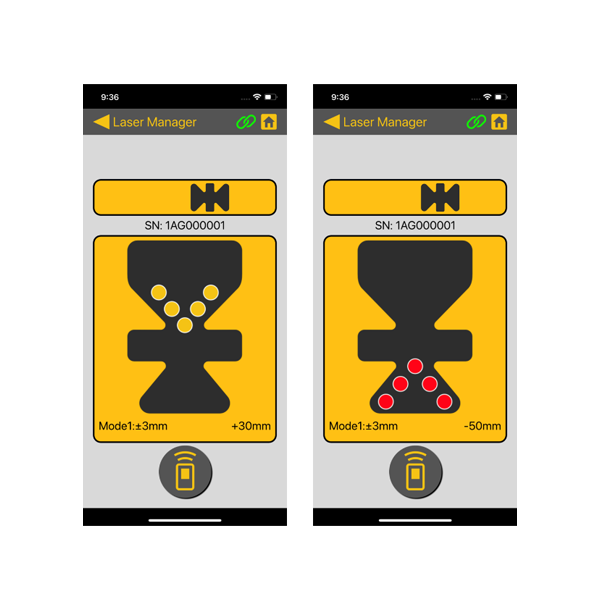

Laser Manager App*
On-grade matching (mm/ft)
40/0.13
Recommended application
Grade checking and machine control

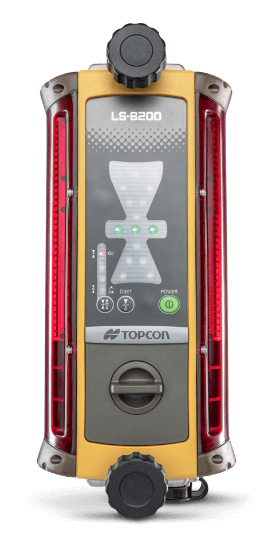

LS-B200
Detection range (mm/ft)
175/0.6
Detection angle (deg)
360
Detection precision (mm/ft)
Mode 1: +/- 3/0.01
Mode 2: +/- 6/0.02
Mode 3: +/- 15/0.05
Mode 4: +/- 30/0.1
Laser detection range (diameter; m/ft)
800/2600
Power source
---
Continuous operating time (hours)
100 (alkaline) 50 (BT83Q)
IP-class
IP-66
Wireless communication range (m/ft)
---
Interface
CAN (only for power)
Remote Display
---
On-grade matching (mm/ft)
150/0.5
Recommended application
Machine control

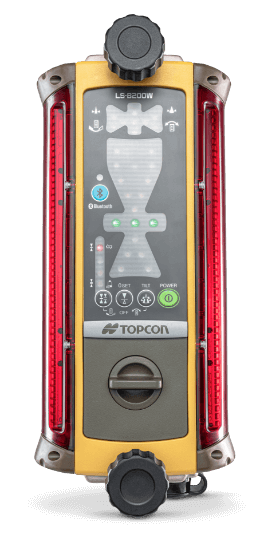

LS-B200W
Detection range (mm/ft)
250/0.8
Detection angle (deg)
360
Detection precision (mm/ft)
Mode 1: +/- 3/0.01
Mode 2: +/- 6/0.02
Mode 3: +/- 15/0.05
Mode 4: +/- 30/0.1
Laser detection range (diameter; m/ft)
800/2600
Power source
---
Continuous operating time (hours)
80 (alkaline) 40 (BT83Q)
IP-class
IP-66
Wireless communication range (m/ft)
20/65
Interface
RS-485/CAN/Bluetooth
Remote Display
Laser Manager app*
On-grade matching (mm/ft)
150/0.5
Recommended application
Machine control
*Laser Manager app requires a one-time set-up fee.
