Laser receivers help you get awesome grades

Laser grade control for excavators, bulldozers, graders and compact equipment.

Hero Image

Laser-focused performance

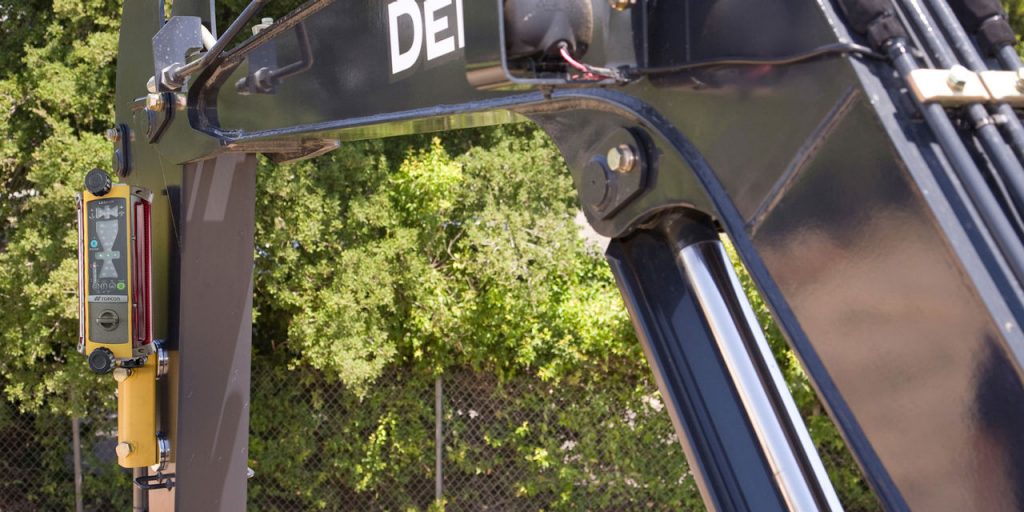

Flexible magnetic and screw mounts provide quick setups and easy removal at the end of the day. Adding an optional holder also enables use on a grade rod, increasing the return on your grade checking investment.

Laser receiver benefits

  • Machine control and grade checking functionality
  • Ruggedized designs work in wet and dirty environments
  • Simple, bright indicators are easy to read
  • Magnetic or screw mounts enable quick and easy set ups
  • Removability prevents theft
  • Long battery life means fewer interruptions
Rugged tablets help you get more done with less time and money

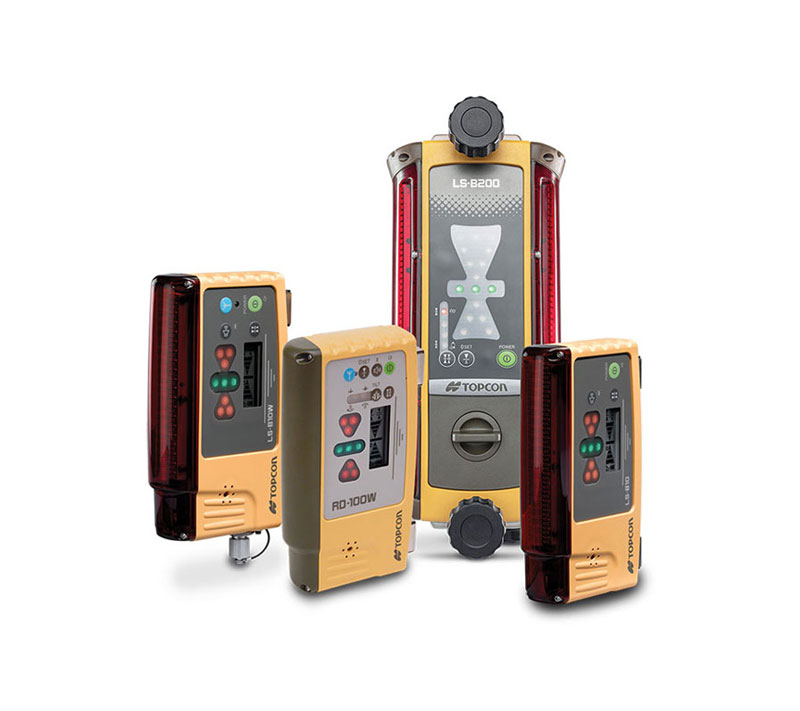

Topcon laser receivers provide cost-effective grade solutions for:

Excavators and backhoes

Bulldozers

Graders

Scrapers

Mini-excavators

Skid-steer loaders

Compact track loaders

Dragboxes

Pole-based grade checking

Other construction machines and attachments


NOTE: Due to interstate and international shipping constraints, Topcon products do not include alkaline batteries. Types and numbers of alkaline batteries required for each product are clearly indicated as part of the product package and should be purchased locally.

Compare products

Find the right product for your applications.

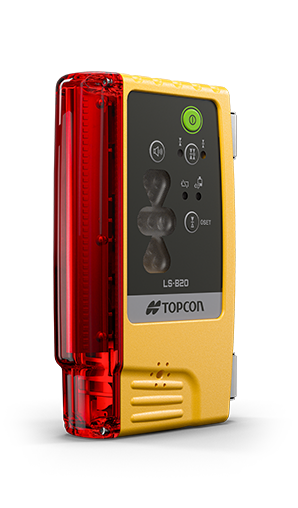

LS-B10

LS-B20

Detection range (mm/ft)

120/0.4

Detection angle (deg)

270

Detection precision (mm/ft)

Mode 1: +/- 2/0.007
Mode 2: +/- 6/0.02
Mode 3: +/- 12/0.04
Mode 4: +/- 30/0.1

Laser detection range (diameter; m/ft)

700/2300

Power source

3 AA dry cell batteries

Continuous operating time (hours)

100

IP-class

IP-66

Wireless communication range (m/ft)

---

Interface

---

Remote Display

---

On-grade matching (mm/ft)

40/0.13

Recommended application

Grade checking

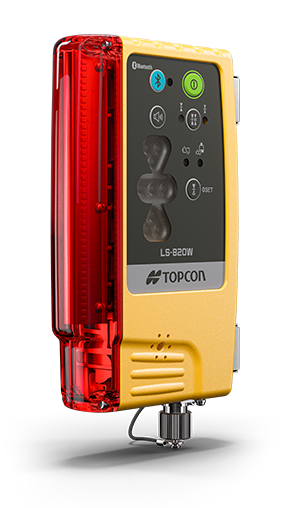

LS-B10W

LS-B20W

Detection range (mm/ft)

120/0.4

Detection angle (deg)

270

Detection precision (mm/ft)

Mode 1: +/- 2/0.007
Mode 2: +/- 6/0.02
Mode 3: +/- 12/0.04
Mode 4: +/- 30/0.1

Laser detection range (diameter; m/ft)

700/2300

Power source

3 AA dry cell batteries

Continuous operating time (hours)

30

IP-class

IP-66

Wireless communication range (m/ft)

20/65

Interface

RS-485/CAN/Bluetooth

Remote Display

Laser Manager App*

On-grade matching (mm/ft)

40/0.13

Recommended application

Grade checking and machine control

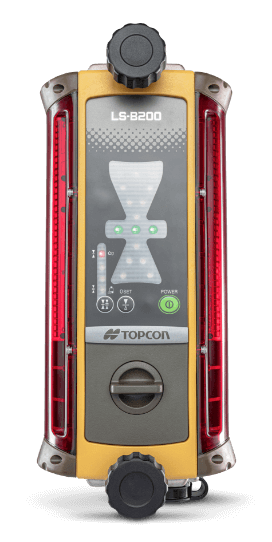

LS-B200

Detection range (mm/ft)

175/0.6

Detection angle (deg)

360

Detection precision (mm/ft)

Mode 1: +/- 3/0.01
Mode 2: +/- 6/0.02
Mode 3: +/- 15/0.05
Mode 4: +/- 30/0.1

Laser detection range (diameter; m/ft)

800/2600

Power source

---

Continuous operating time (hours)

100 (alkaline) 50 (BT83Q)

IP-class

IP-66

Wireless communication range (m/ft)

---

Interface

CAN (only for power)

Remote Display

---

On-grade matching (mm/ft)

150/0.5

Recommended application

Machine control

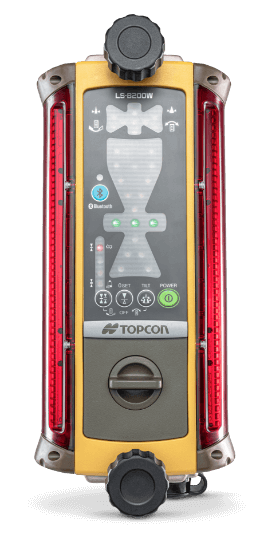

LS-B200W

Detection range (mm/ft)

250/0.8

Detection angle (deg)

360

Detection precision (mm/ft)

Mode 1: +/- 3/0.01
Mode 2: +/- 6/0.02
Mode 3: +/- 15/0.05
Mode 4: +/- 30/0.1

Laser detection range (diameter; m/ft)

800/2600

Power source

---

Continuous operating time (hours)

80 (alkaline) 40 (BT83Q)

IP-class

IP-66

Wireless communication range (m/ft)

20/65

Interface

RS-485/CAN/Bluetooth

Remote Display

Laser Manager app*

On-grade matching (mm/ft)

150/0.5

Recommended application

Machine control

*Laser Manager app requires a one-time set up fee.

Remote Display Options

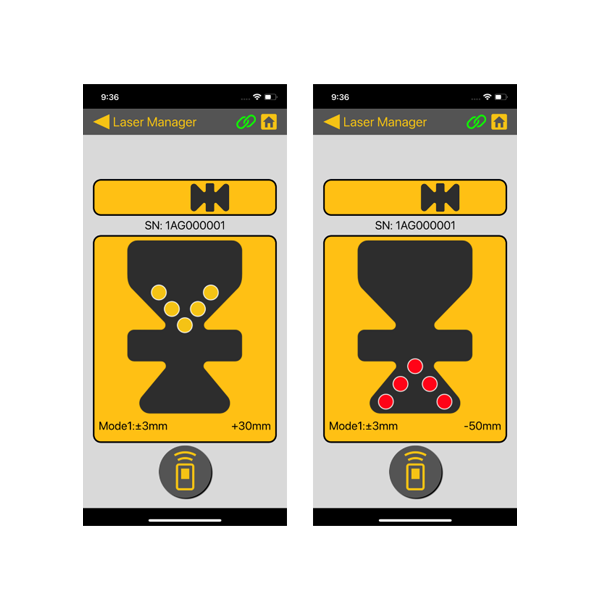

Machine control applications require being able to work from the cab where it isn’t easy to read the indicator arrows on a stick-mounted receiver. Remote displays bring the grade indicators inside the cab. The LS-B200W receiver is designed to work with the Laser Manager mobile app, turning your smart device into a remote display.
