GNSS antennas improve accuracy for stationary networks or while on the move
Full-wave GNSS antennas track existing and future signals, including GPS, Galileo, BeiDou, GLONASS, QZSS and L-band. Whether you need a fixed antenna for your reference network or infrastructure monitoring application, a machine-mounted antenna for construction or precision agriculture, or a pole-mounted campaign antenna for surveying work, all our antennas carry IP67 ratings for dust and water resistance.
Compare products

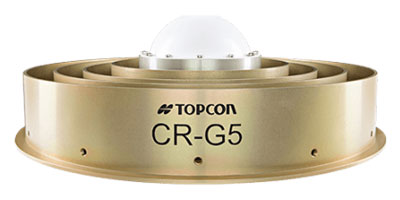

CR-G5
Ideal use
High-accuracy networking
Key features
- TA-5 vertical convex dipole antenna element
- Choke ring ground plane
- A cavity filter option that provides additional mitigation for near-band jamming
Operating frequency lower band
1230±70 MHz
(L5, E5B, E3, L2, G2, E4, E6)
Operating frequency upper band
1565±50 MHz
(E2, L1, E1, G1, OmniStar, SBAS, CDGPS)
LNA gain
43 dB
Operating temperature
-50°C to +85°C
Dimensions
Antenna without anti-snow
Dome: 380 mm (D) x 155.5 mm (H)
Anti-snow Dome: 380 mm (D) x 292 mm (H)
SCIGN dome: 415 mm (D) x 287 mm (H)
PN-A5
Ideal use
High-accuracy networking
Key features
- TA-5 vertical convex dipole antenna element
- Semi-hemispherical convex impedance ground plane
- Minimum signal loss to the horizon
Operating frequency lower band
1230 MHz±70 MHz
Operating frequency upper band
1565 MHz±50 MHz
LNA gain
43 dB
Operating temperature
-50°C to +85°C
Dimensions
Antenna: D: 15” (380 mm) H: 10.3” (262 mm)
Dome: D: 15” (380 mm) H: 11.5” (292 mm)
SCIGN dome: D: 16.3” (415 mm) H: 11.3” (287 mm)
PG-F1
Ideal use
Surveying and construction
Key features
- Detachable ground plane for additional portability
- Rugged, lightweight
- Pairs with Topcon modular and handheld GNSS receivers for typical rover field work
Operating frequency lower band
1230 ± 70 MHz
(L5, E5A, E5B, E3, L2, G2, E4, E6)
Operating frequency upper band
1565 ± 50 MHz
(E2, L1, E1, G1, SBAS)
LNA gain
35 dB
Operating temperature
-50°C to +85°C
Dimensions
141.6 x 67.3 x 141.6 mm
G5-A1
Ideal use
Budget-sensitive base receivers, geodetic campaigns
Key features
- Portable geodetic antenna
- Multipath reduction
- Economical all-in-view signal tracking
Operating frequency lower band
1230±70 MHz
(E5a, L5, E5b, G3, B2, E3, L2, G2, E4, B3, E6)
Operating frequency upper band
1570±40 MHz
(E2, B1, L1, B1-2, E1, G1, SBAS)
LNA gain
35 dB
Operating temperature
-40°C to +85°C
Dimensions
298 x 75 mm
