For when an additional load monitoring display is desired.
Accurate loading improves efficiency and reduces waste
Precision-engineered indicators and load cells ensure every load is measured accurately, helping maximize productivity and minimize losses. Explore our options servicing key applications in crop and livestock production.

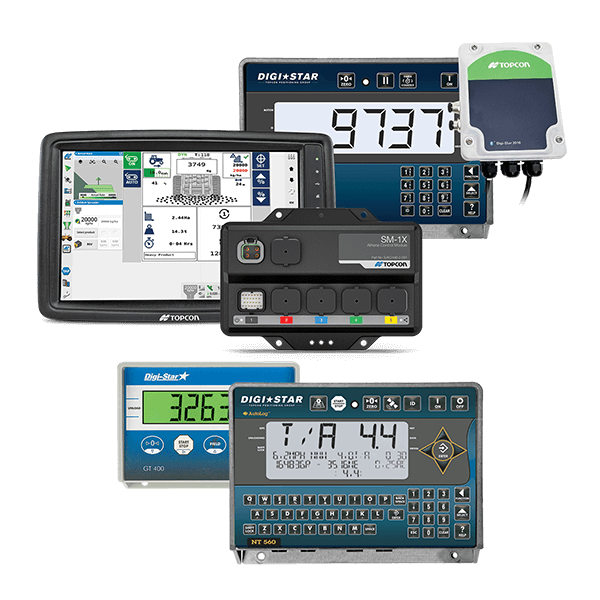

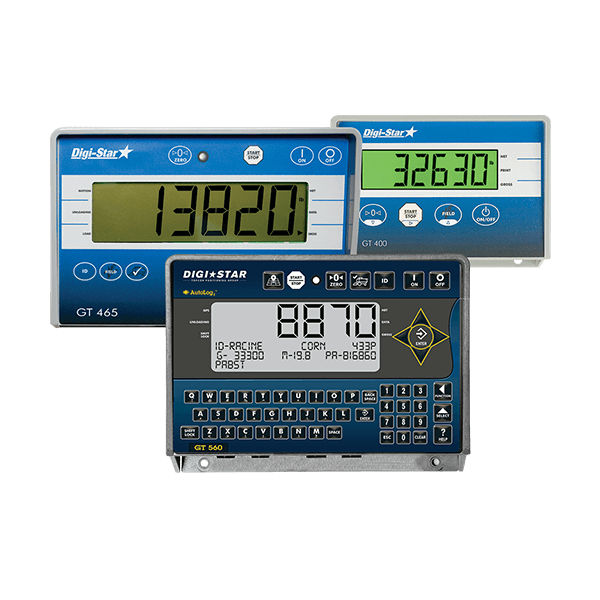

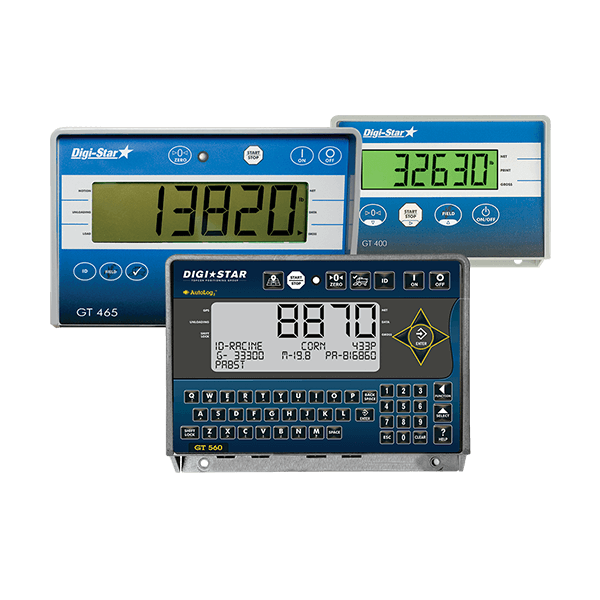

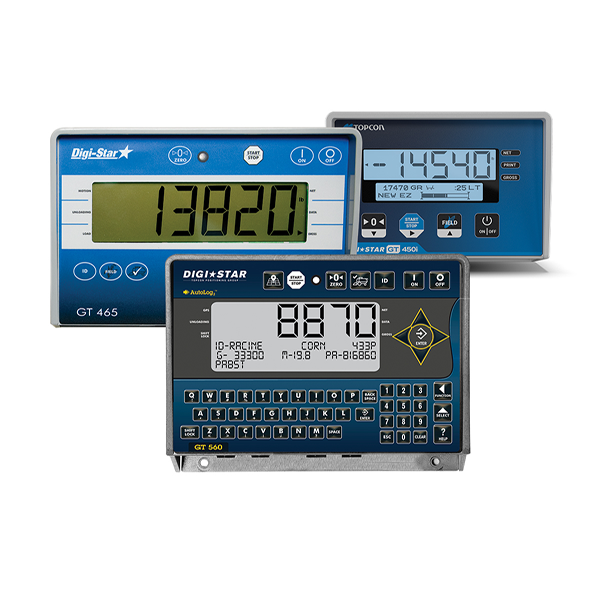

Harvest Cart Weighing
Weight based harvest cart (e.g., grain cart) load data to measure crop yield, improve efficiency, manage grain storage, keep load weights road legal, and streamline documentation as well as reporting.
Featuring
- Clear backlit LCD displays with range of sizes and functionality
- Keyboard for easily editing field and load information
- Complementary mobile app (Harvest Tracker Lite)
- Software (Harvest Tracker or Topcon Agriculture Platform) for data organization, visualization and reports in many popular formats

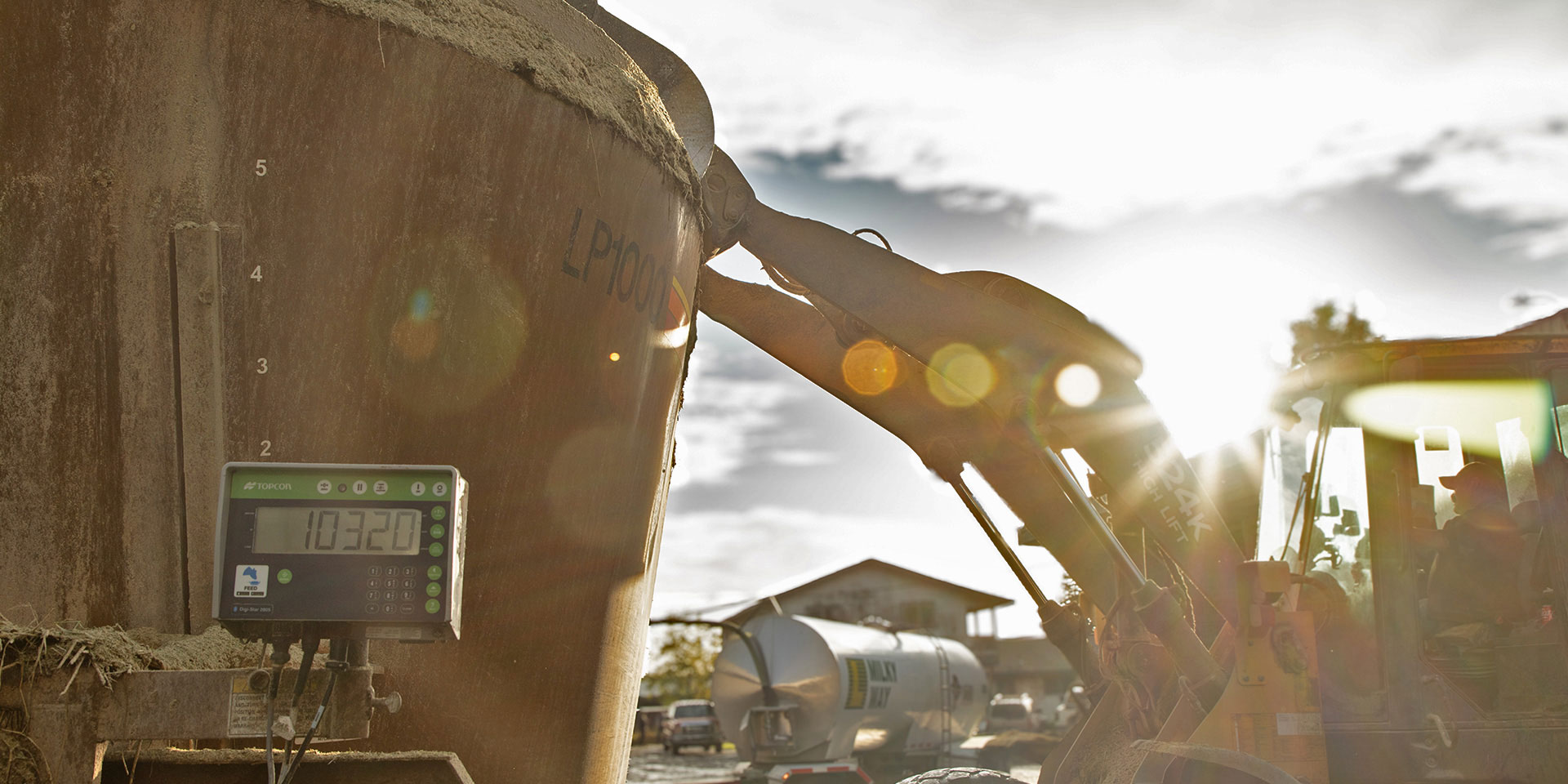

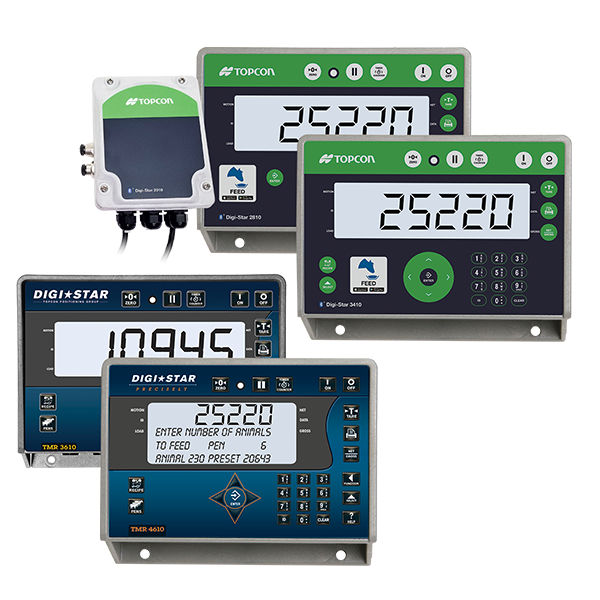

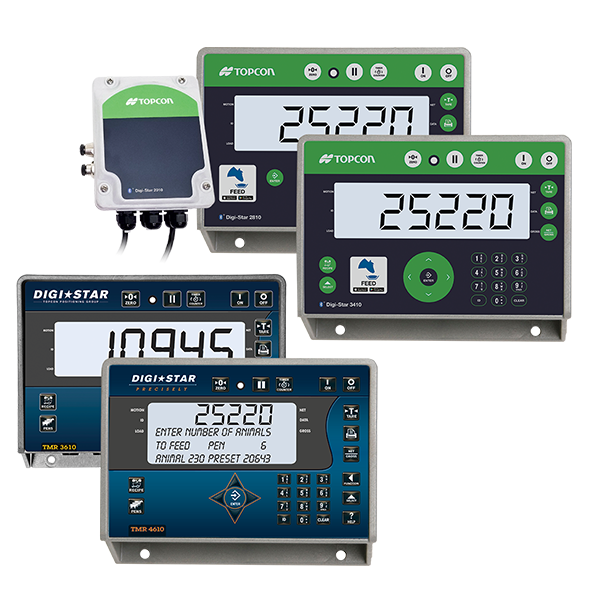

Feed Mixer Weighing
Weight based feed load data to precisely manage feed inputs, improving efficiency, reducing waste and increasing production.
Featuring
- Clear backlit LCD displays with range of sizes and functionality
- Available in a variety of indicator models or as a ScaleLink ECU for when a display is not needed
- Keyboard for easily editing load information
- Complementary mobile app (TAP FEED) for Bluetooth enabled indicators
- Software (TAP FEED) for data management, analysis, optimization, reports, and sharing with other stakeholders

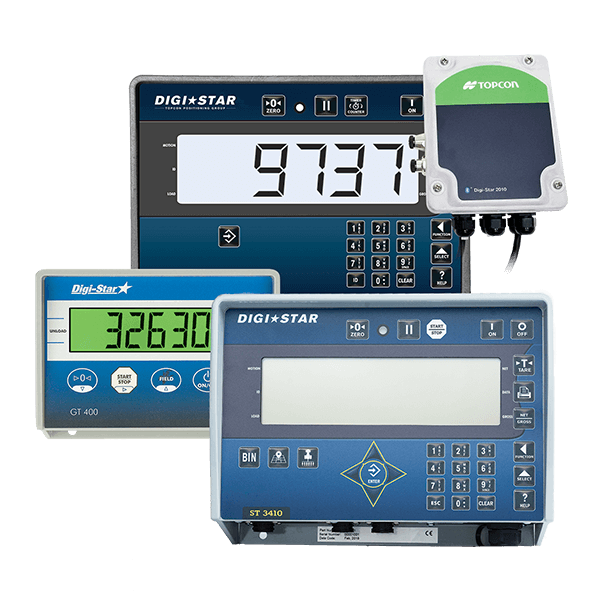

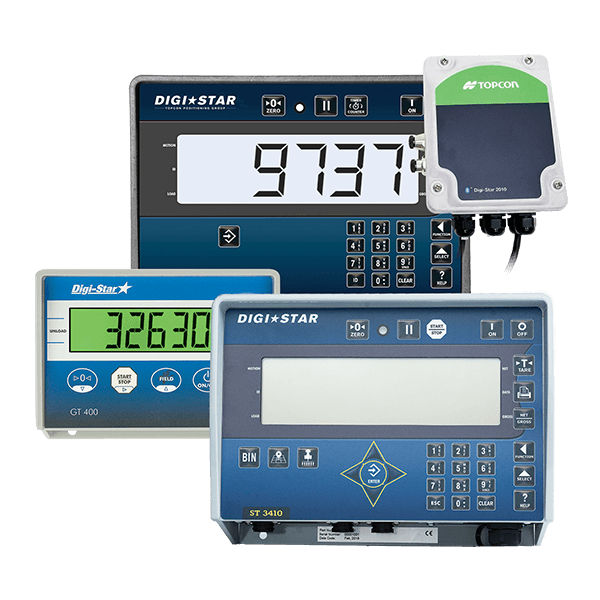

Seeding and Planting Weighing
Weight based data for seed tenders, planters, and air seeders designed to reduce waste and improve reporting.
Featuring
- Clear backlit LCD displays
- Keyboard for easily editing load information
- Available in a variety of indicator models or as an ISOBUS ScaleLink ECU allowing manufacturers to utilize weight information in system programming. Enables accurate application control and weight data monitoring.
- Complementary mobile app (CabControl)

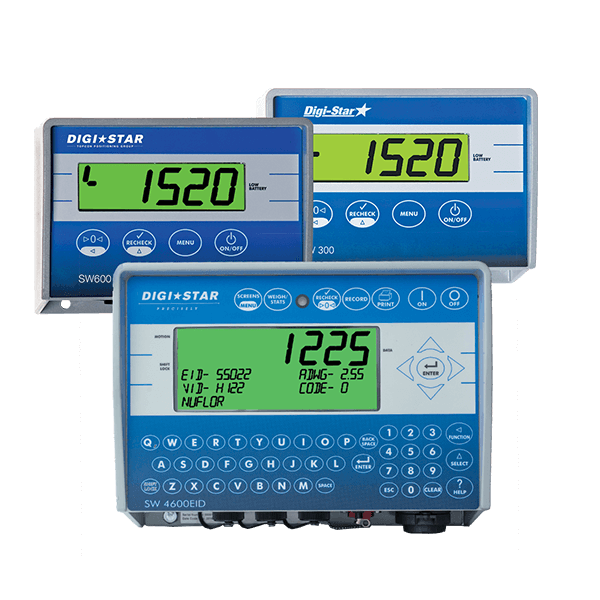

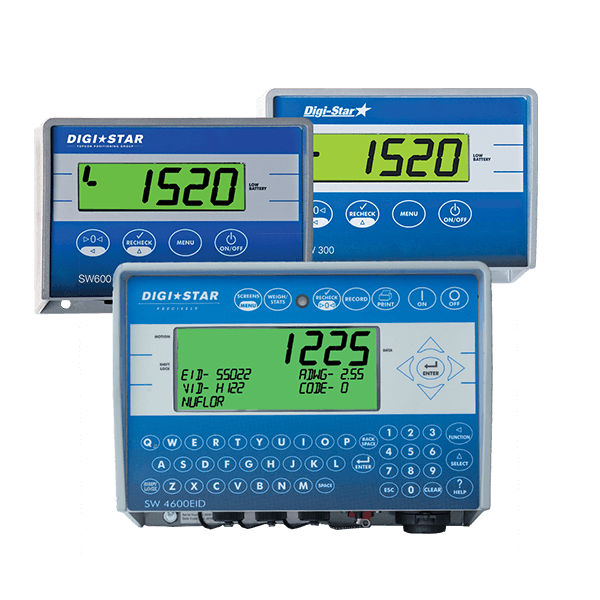

Animal Weighing
Weight based data for animals to improve efficiency and streamline reporting.
Featuring
- Clear backlit LCD displays with range of sizes and functionality
- Keyboard for easily editing load information
- Designed for rugged or uneven environments
- Software (StockWeigh) for data organization and reports

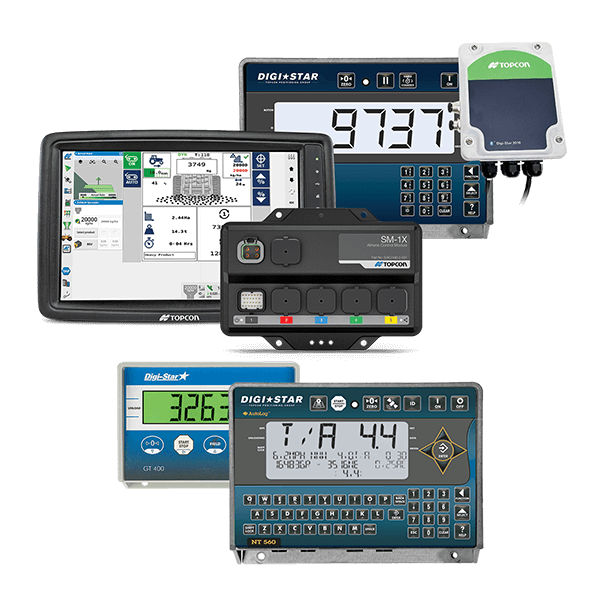

Dry Fertilizer and Manure Weighing
Weight based load data for fertilizer tenders and spreaders designed to reduce waste and improve reporting.
Featuring
- Clear backlit LCD displays
- Keyboard for easily editing load information
- Available in a variety of indicator models or as an ISOBUS ScaleLink ECU allowing manufacturers to utilize weight information in system programming. Enables accurate application control and weight data monitoring.
- Complementary mobile app (CabControl)
- Software (NutrientTracker) for data organization and reports
Remote Displays

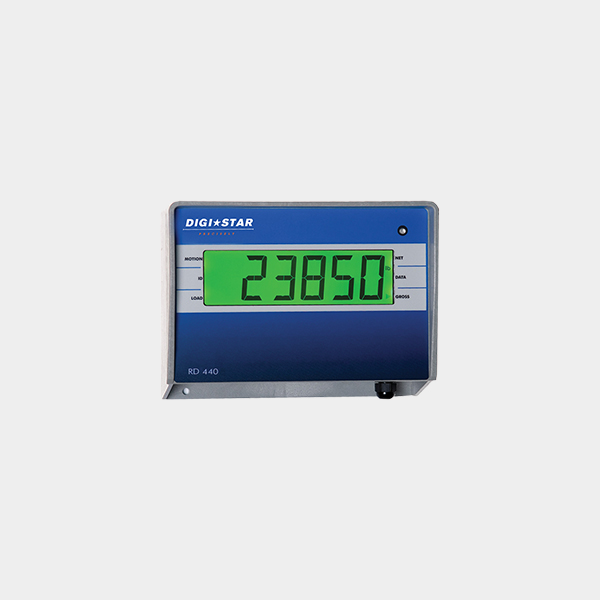

Remote Display Digi-Star RD 440
Featuring
Clear 1" LCD display with alarm light
Compact size perfect for mounting on truck mirrors
Applications

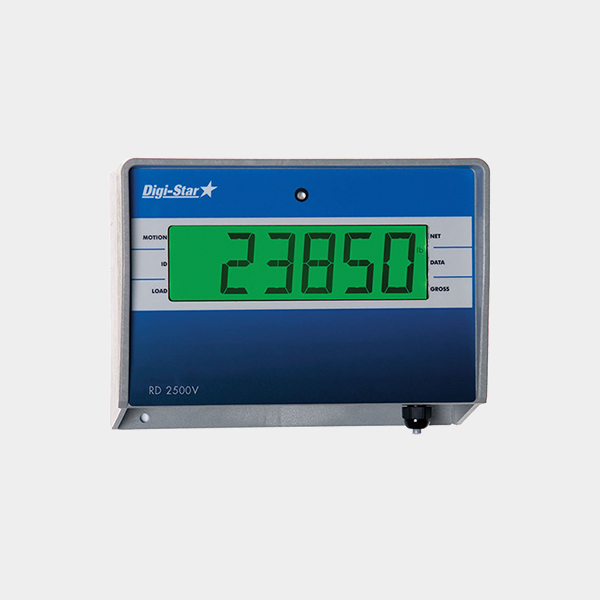

Remote Display Digi-Star RD 2500
Featuring
Large 1.7" LCD display with alarm light
Applications

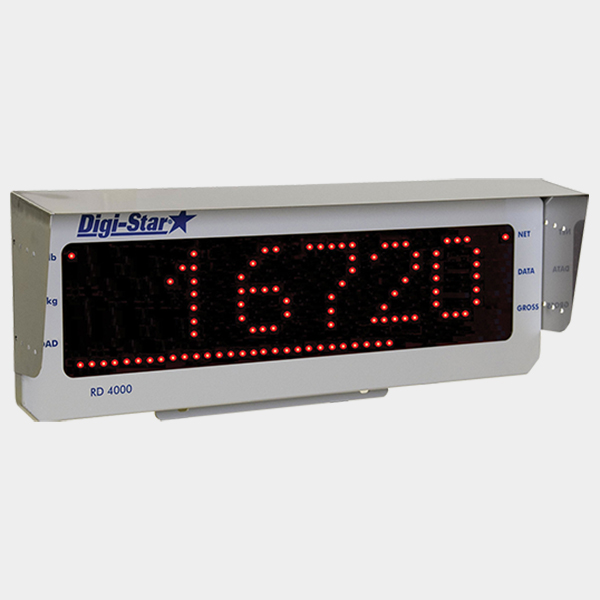

Remote Display Digi-Star RD 4000
Featuring
Large 4" LED ultra bright display with lighted load progression bar
Applications
Load Cells
Load cells are an integral component of any weighing system to measure loads. We manufacture custom load cells for many agriculture machines including harvest carts, TMR mixers, feed bins, seed tenders, planters, spreaders, combines, round balers, and animal platform scales. Please contact us for customization and purchasing options.
Shear Beams (SB)
Overview
- Available in capacities up to 10,000 lbs.
- Accuracy: 99.9%
- Specially designed for compact installations, such as animal weighing, platform weighing and (bio)mixer applications
Compression Transduces (CT)
Overview
- Available in capacities up to 50,000 lbs.
- Accuracy: 99.75% to 99.9%
- Standard temperature compensated
- Ideal for stationary/mobile applications with high capacity, such as feed mixers, grain carts, (bio)mixers, silos and weighbridges
- Special mounts available for stationary or mobile applications
Weigh Beams
Overview
- Available in 16”, 24”, 33-1/2” and 44” lengths
- Capacity per beam 1,650 lbs, 3,300 lbs, or 6,600 lbs
- Accuracy ±1%
- Specially designed for do-it-yourself mounting under platforms and animal weighing cages
- Self-leveling for uneven surfaces
Differential and Shear Weigh Beams (DB and SB)
Overview
- Available in capacities from 1,500 to 30,000 lbs.
- Accuracy: 99.5%
- Specially designed for installation in frames or on axles
- OPTIONAL: Temperature compensated load cells are available for applications requiring accurate inventory over varying temperatures
Differential and Shear Weigh Axles (DA and SA)
Overview
- Available in capacities from 3,500 to 50,000 lbs.
- Accuracy: 99.5%
- Specially designed for weight in axle constructions
- Some models are designed for use with brakes
Flow Sensors
Overview
- Customer-specific design and development
- Developed for special customer-specific applications
