Maximum performance for milling machines

Work your way - follow a height reference or mill in 3D at variable depth

Get in touch
Hero Image

The right setup for your project and budget

MC-Max Milling Machine is built on the MC-X Platform, meaning you get maximum flexibility to set up your mill for the way you work. Choose from entry-level systems that follow a reference; or fuller-featured solutions that track your milling machine in 3D and enable automated variable depth milling for ultimate road smoothness.

Variable depth milling

Traditional milling techniques often involve taking off a fixed depth of the old surface to prepare for the application of a new layer of asphalt. This may result in a wavy or uneven road maintaining its former shape even after it is repaved.

Variable depth milling automatically adjusts the mill’s blade height to average the high and low points for a smoother road with a longer projected lifespan. This technique is especially valuable and provides a better driving experience over longer distances.

3D milling options

Our 3D milling systems use Millimeter GPS, GNSS, or robotic total stations to position and report on the machine’s location. This reduces reliance on string lines or other references and accelerates the milling process. Files used during the 3D milling process are often usable at the paving or compaction stages of a road project. In addition, 3D milling tends to ease the downstream burdens on paving and compacting teams.

2D milling options

Sometimes following the well-traveled road is the right approach. Our 2D milling systems use sonic trackers or other sensors to follow string lines, existing surfaces, or curbs. Mill and fill (also known as mill and overlay) projects or relatively consistent paved surfaces are good uses of this technology

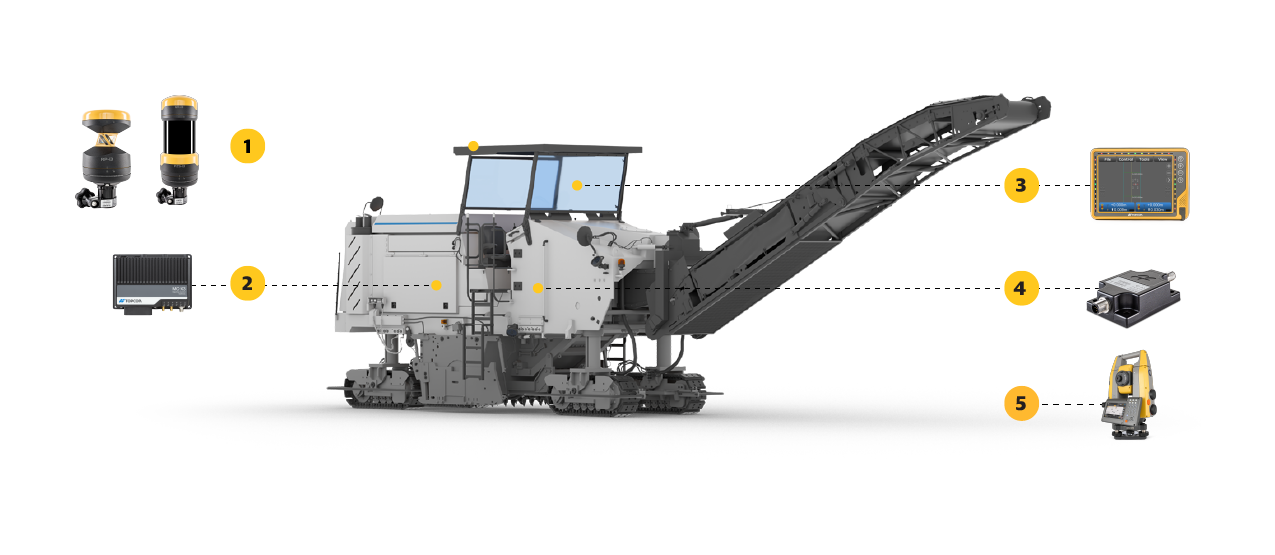

Sample configuration

The MC-Max Milling Machine solution allows you to combine and configure groups of components and sensors for your project needs. Here is one example, but you can learn about additional configurations here.

1. GNSS receivers, mmGPS, prism, etc.
2. Controller
3. Display
4. Inertial measurement sensor
5. Robot

Related offerings

Establish a level foundation with SmoothRide for RD-MC

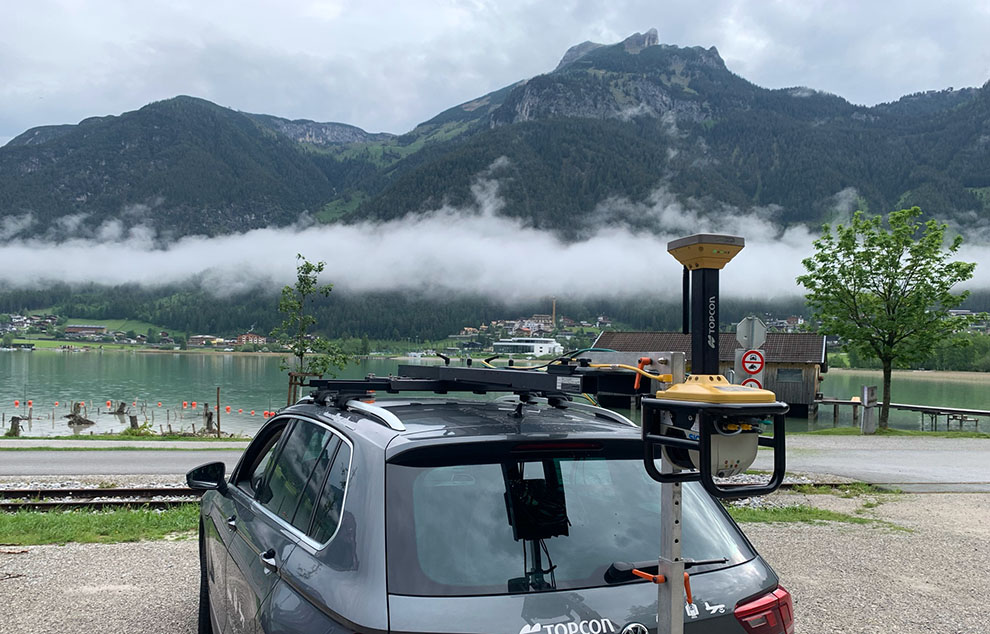

Smooth road surfaces start with a solid plan for milling efforts. Scanning existing road conditions while traveling at speed is the first step in the SmoothRide road resurfacing process. Millions of points of scan data is used to accurately depict as-built data, provide estimates, and create the design for your milling project.

Virtual Ski dramatically cuts design time

Virtual Ski is made for federal and country roads and others where there are fewer fixed points to match. Simply scan the surface and let the milling machine do the design job. Our 3D-MC milling software lets you replace analog Multiplex-Ski, Big Ski or Sonic Ski models and offset the Virtual Ski from 13 to 330 feet off your chosen alignment, even on sharp curves. The result is a reduction in ski installation downtime and an even base where pavers can be set to a consistent thickness.

Major brands supported:

Wirtgen

ROADTEC

CAT

Bomag
